Looking For A New Hf Transceiver ...
Take A Look At The  Icom IC -7300

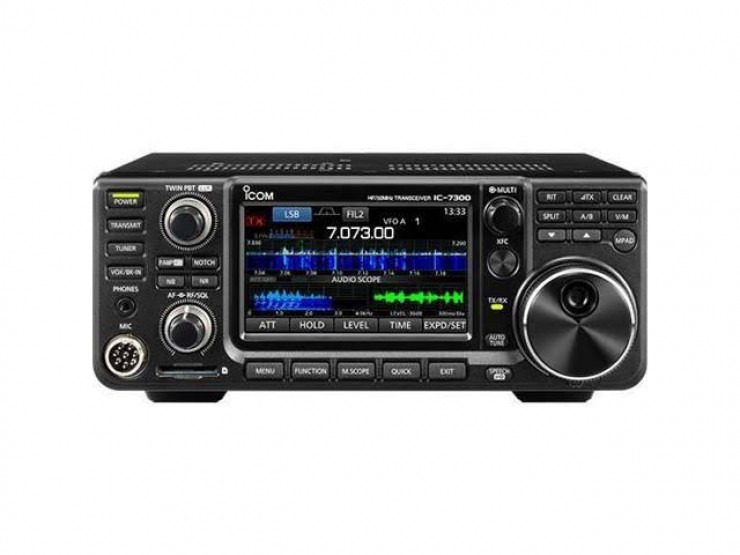

Icom IC -7300


Icom IC -7300

Features



  • Built-in automatic antenna tuner
  •
  • 101 channels (99 regular, 2 scan edges)
  •
  • SD memory card slot for saving data
  •
  • Cooling fan system
  •
  • Multi-function meter
  •
  • CW functions: full break-in, CW reverse, CW auto tuning
  •
  • SSB, CW, RTTY, AM, FM modes

15 Discrete Band-Pass Filters


                                 The RF Direct Sampling is protected by an array of bandpass filters.  The signal passes through one of the fifteen bandpass filters, where signals outside the passband are rejected.  To reduce the insertion loss, the IC-7300 utilizes High Q factor coils.




RF Direct Sampling System

                 The IC-7300 employs an RF direct sampling system, where RF signals are directly converted to digital data.  Then processed in the FPGA (Field-Programmable Gate Array), making it possible to simplify the circuit construction as well as reduce noise that can mask weak signals.
                           The new "IP+" improves the 3rd order intercept point (IP3) performance improving the ability to copy a weak signal that is adjacent to either a strong interfering signal.  In this process, A/D converter is optimized to reduce or eliminate signal distortion

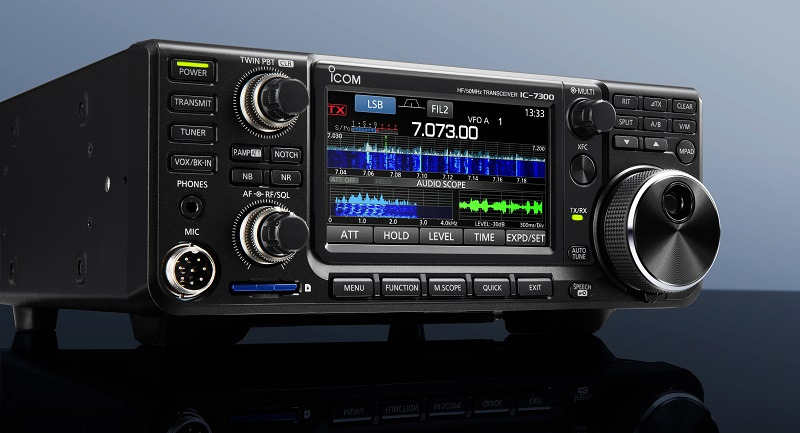

Large Color Touch Screen

               The large 4.3" color TFT touch LCD offers intuitive operation of functions, settings, and various operational visual aids such as the band scope, waterfall function, and audio scope.
                           Like on the high-end rigs, the waterfall shows a change of signal strength over a period of time and allows you to find weak signals that may not be apparent on the spectrum scope.

Icom IC - 7300

Icom Top Brand  Dependability
